Ink bleed occurs when ink spreads into the porous corrugated board. It stems from excessive pressure, low viscosity, or substrate issues. Correct it by adjusting press settings, using barrier coatings, and verifying substrate quality.
- Ink bleed is usually a press or substrate issue, not a design error.
- Excessive impression and low ink viscosity are the most common mechanical causes.
- Barrier coatings and substrate upgrades reduce the risk of surface bleeding.
- Document every defect with photos and press data to hold the supplier accountable.
- Prevent recurrence by setting clear quality gates before the run starts.

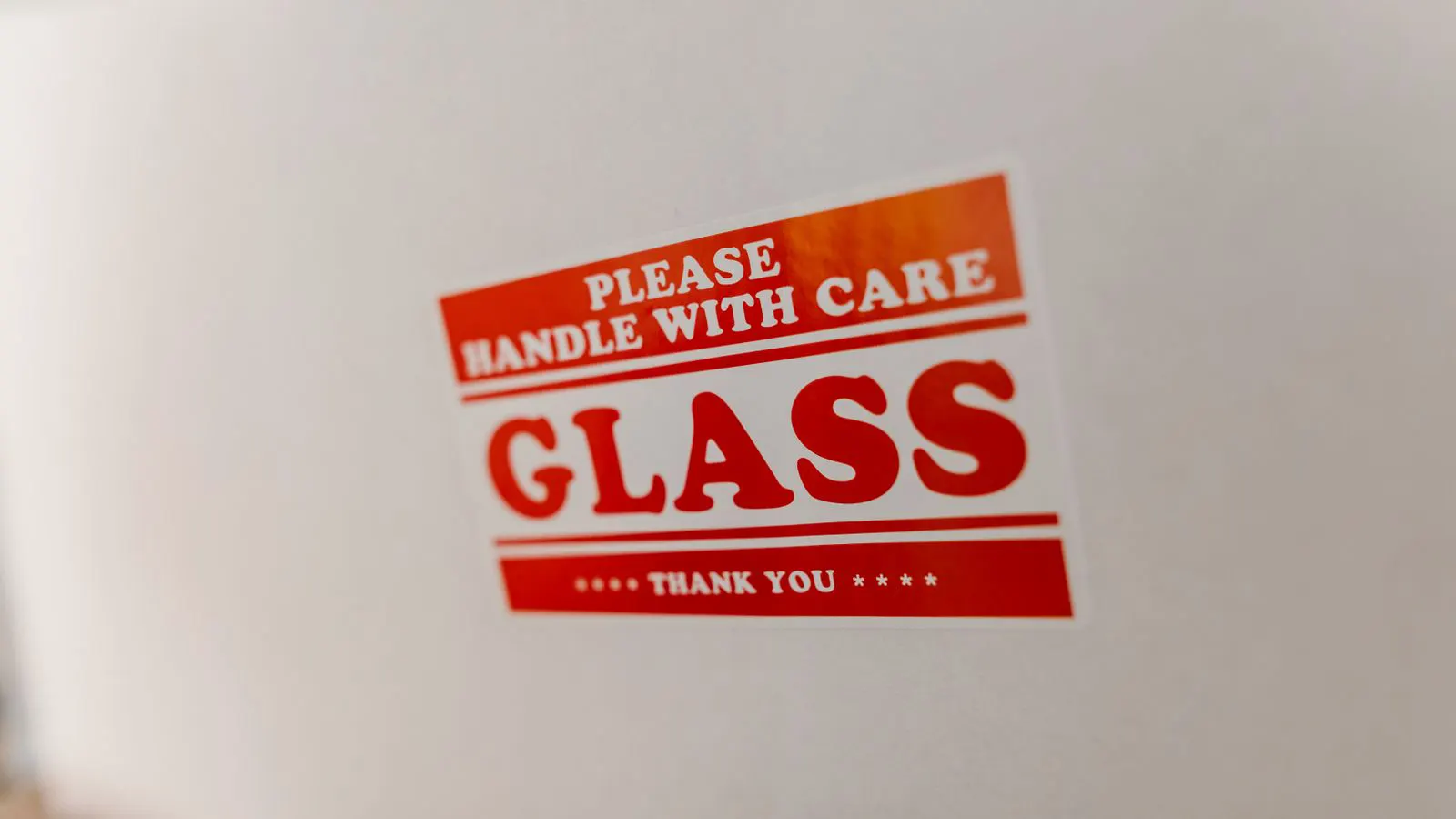

Ink bleed on corrugated is a surface defect where printed ink spreads beyond the intended line or dot. It creates a soft edge, a fuzzy halo, or a loss of contrast on the carton face. Buyers notice it first during receiving, but the root cause is almost always mechanical. This article outlines the visible symptoms, the likely causes, and the corrective actions to discuss with your printer.
What Does Ink Bleed Look Like?
Ink bleed manifests in a few distinct ways depending on the ink type and the board structure. On single-wall E or B flute cartons, the ink often migrates into the flutes if the liner is thin. On double-wall cartons, the bleed may appear as a darker ring around a spot or a loss of fine detail in small text.
The defect can also appear as a “smear” where the ink is pulled across the board by the roller or the anvil. This is different from ink starvation, where the ink simply does not lay down. Bleed is excess movement. The ink is on the surface, but it has spread too far.
When you inspect a carton, look for three things. First, check the fine lines and small type. These are the first areas to lose definition. Second, examine the edges of solid color fields. A crisp edge should have no halo. Third, look at the corrugation direction. Bleed often runs parallel to the flutes because the ink follows the path of least resistance in the board structure.
Root Causes of the Defect
The cause of ink bleed is rarely a single factor. It is usually a combination of press conditions and substrate properties. The four main drivers are pressure, viscosity, board composition, and coating.
Pressure is the most common mechanical cause. If the impression is set too high, the ink is forced into the paper fibers. The ink does not just sit on top; it penetrates. This is especially true on uncoated or low-weight liner boards. The corrugated liner is porous by design. Without a barrier, the ink will seek out the voids in the liner.
Ink viscosity is the second driver. If the ink is too thin, it flows freely into the board. If it is too thick, it may not lay down evenly, but it is less likely to bleed. The press operator must balance the viscosity with the board’s absorbency. A new substrate lot can change the absorbency, requiring a viscosity adjustment. If the operator does not make this change, the ink will bleed.
Board composition is the third factor. Different corrugated grades have different liner weights and basis weights. A lighter liner is more absorbent. A heavier liner holds ink better. If the supplier switches from a 17 lb liner to a 12 lb liner without informing you, the ink will bleed. The board structure also matters. A board with a higher compressive strength usually has a better surface for printing, but it is not a guarantee.
Coating is the fourth factor. Uncoated board absorbs ink. Coated board repels it. If the carton is printed on uncoated board and the design calls for high detail, bleed is almost certain. Barrier coatings help, but they are not a panacea. The coating must be uniform. A thin or patchy coating will still allow ink to migrate.
The Defect Matrix
Use this matrix to classify the bleed you are seeing. It helps you communicate with the printer and decide on the corrective action.
| Symptom | Likely cause | What to do |
|---|---|---|
| Soft edges around solid color fields | Excessive impression or low ink viscosity | Ask the printer to reduce impression and check ink viscosity. |
| Fine text is blurred or lost | Board is too porous or liner is too light | Request a heavier liner or apply a barrier coating. |
| Bleed runs parallel to corrugation | Ink is migrating through the flute structure | Verify the board grade and check the coating application. |
| Smearing across the surface | Roller pressure is uneven or ink is too wet | Inspect the press rollers and adjust the ink balance. |
| Color shift in adjacent areas | Ink is spreading into neighboring color zones | Reduce the ink load and check the press registration. |
Corrective Actions with the Supplier
When you identify bleed, do not just ask for a reprint. Ask for a root cause analysis. The supplier should be able to tell you which press setting caused the issue. If they cannot, you need to dig deeper.
The first corrective action is to adjust the press settings. The operator should reduce the impression. This keeps the ink on the surface rather than forcing it into the board. They should also adjust the ink viscosity. If the ink is too thin, they need to add a thickening agent. If the board is new, they may need to thin the ink. The goal is a balance.
The second action is to verify the substrate. Check the lot number of the corrugated board. If the bleed started after a new lot arrived, the board composition is the cause. The supplier should have a backup lot or a different grade ready. If they do not, the run is at risk.
The third action is to apply a barrier. If the substrate is too porous, a barrier coating is the fix. This is often a pre-press step. The supplier should apply the barrier before the printing run. If the barrier is applied after, it will not stop the bleed. It will only mask it.
The fourth action is to adjust the design. If the detail is too fine for the board, the design needs to be simplified. Thicken the lines. Increase the font size. Reduce the number of fine details. This is a last resort, but it is the most reliable way to prevent bleed on low-grade board.
Prevention and Quality Gates
Preventing ink bleed is easier than fixing it. Set quality gates before the run starts. The first gate is the substrate. Verify the liner weight and the basis weight. Do not accept a board that is lighter than the specification. The second gate is the coating. Check the coating uniformity. A patchy coating is a defect. The third gate is the press test. Run a test strip before the full run. Inspect the test strip for bleed. If it bleeds, do not start the run.
The fourth gate is the in-process check. The printer should check the first carton, the middle carton, and the last carton. If the bleed appears in the middle, the press settings drifted. If it appears only at the start, the ink was too wet. If it appears only at the end, the ink dried out.
The fifth gate is the receiving check. When the cartons arrive, inspect them. Look for bleed on the fine details. Check the edges of the color fields. If you find bleed, document it. Take photos. Note the carton number. Note the date. This documentation is your use. It forces the supplier to take ownership.
Common Mistakes to Avoid
Do not blame the design. The design is rarely the cause of bleed. The cause is mechanical. Do not accept a “minor” bleed. If it is visible, it is a defect. Do not let the supplier switch board grades without your approval. The board grade determines the print quality. Do not skip the test strip. It is the only way to catch the issue before the run.
Do not assume the bleed is a storage issue. Moisture can warp the board, but it does not cause ink to spread. The ink is already on the surface. The spread is a result of the pressure and the board composition. Do not ignore the substrate lot. A change in lot can change the absorbency. The printer must adjust the ink for the new lot.
Do not expect a fix without documentation. Photos and press data are required. Without them, the supplier cannot diagnose the issue. Do not let the supplier blame the board supplier without checking. The board may be fine. The press may be set wrong. The root cause must be isolated.
Final Thoughts
Ink bleed is a solvable problem. It is not a mystery. It is a result of pressure, viscosity, board composition, and coating. Identify the symptom. Check the cause. Apply the fix. Set the quality gates. Prevent the recurrence.
The buyer’s role is to be informed. Know the board grade. Know the press settings. Know the quality gates. The supplier’s role is to be responsive. Diagnose the issue. Fix the press. Verify the board. Document the result.
This is a partnership. The goal is a carton that looks good and protects the product. Bleed ruins both. Fix it.
Frequently asked questions
Can ink bleed be fixed after the carton is printed?
No. Bleed is a surface defect. It cannot be removed. The only fix is to reprint the carton with corrected press settings or a better substrate.
Is ink bleed more common on double-wall cartons than single-wall?
Not necessarily. Double-wall cartons have thicker liners, which can absorb ink better. However, the larger surface area means more room for the defect to show. The cause is the same: pressure and viscosity.
How do I know if the bleed is from the board or the press?
Run a test strip on a new board lot. If it bleeds, the board is the cause. If it does not bleed, the press settings are the cause. The test strip isolates the variable.
Can I use a heavier liner to prevent bleed?
Yes. A heavier liner is less porous. It holds the ink on the surface. It is a direct way to reduce bleed. The trade-off is cost. A heavier liner is more expensive.
What is the best way to document a bleed defect?
Take photos of the defect from multiple angles. Note the carton number and the date. Send the photos to the supplier. Ask for a root cause analysis. Do not accept a generic apology.
