Why Flute Size Affects Stack Stability in Warehousing

How Flute Geometry Handles Compression

A corrugated box does not stand on its walls. It stands on the interlocking structure of the corrugated board. The flutes act like tiny columns of air. When weight presses down from above, the top and bottom sheets of the board flatten toward each other. The flutes resist this pressure by bending and compressing.

The size of the flute determines how much force that resistance can handle. A small flute has less air volume and a shorter path for the board to compress before the flutes collapse. A larger flute holds more air and has a longer path to compress. This is why flute types directly affect how many boxes a single column can support before the structure fails.

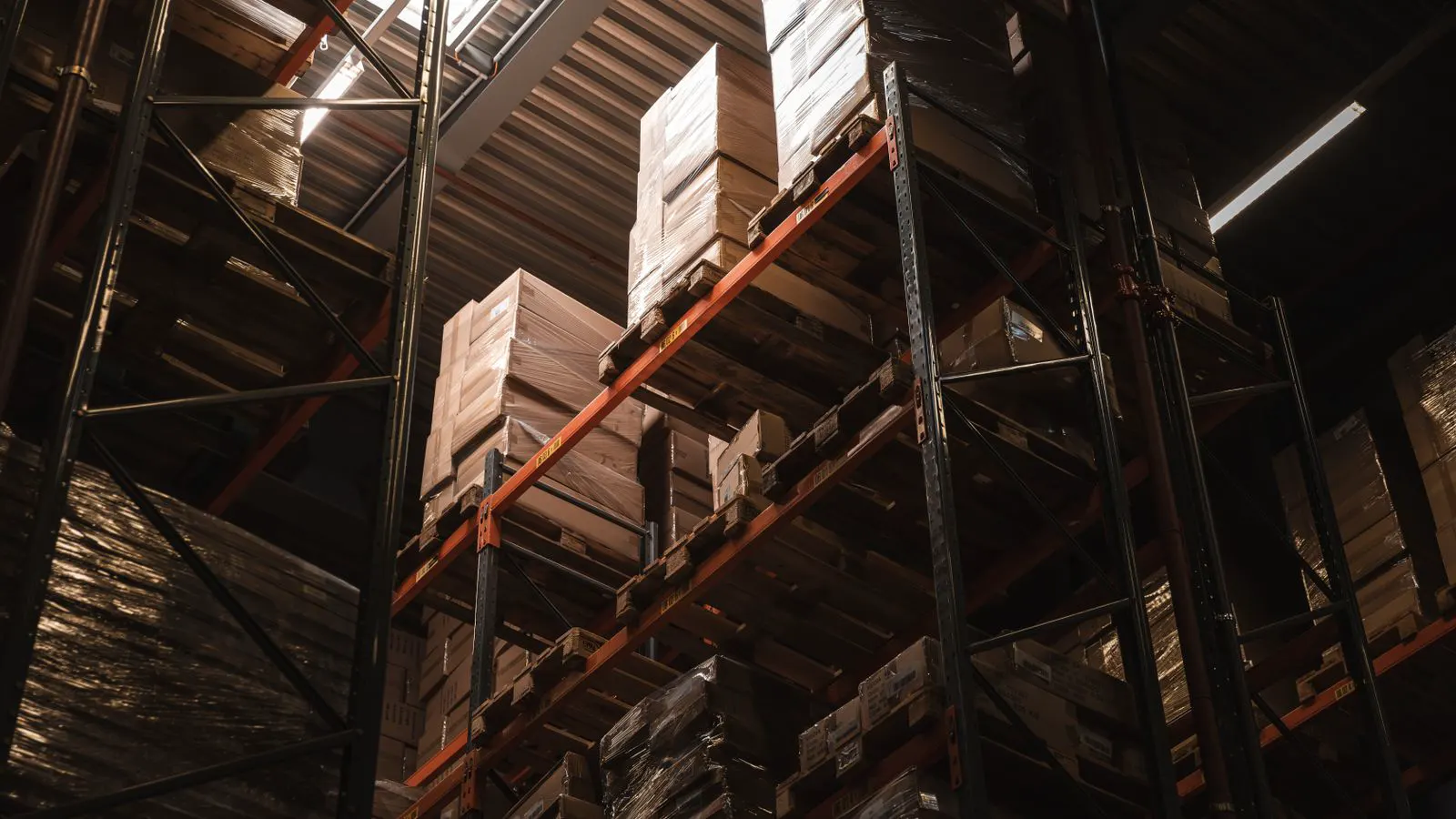

In a warehouse, boxes are rarely stacked just for a day. They sit under weight for weeks or months. The static load of the boxes above them constantly presses on the flutes below. If the flute type is too small for that load, the sides will slowly flatten. The box becomes shorter and wider. The next box above may tip or shift. The stack becomes unstable.

The physics here rely on the relationship between wall thickness and the distance between the corrugations. A double-wall board creates a deeper compression path than a single-wall board, but the specific geometry of the flute, whether it is a tight, sharp curve or a wider, shallower one, changes how the material yields. Sharp, narrow flutes can offer high initial resistance but may buckle suddenly once the critical load is reached. Wider flutes tend to compress more gradually, giving the operator visual cues of failure before the stack drops. Understanding this difference is key to selecting the right material for your specific stacking height.

Symptoms of Flute Failure in Storage

You can usually see flute failure before the stack collapses completely. The early signs are often subtle but easy to miss if you are not looking for them.

• The top of a lower box appears dented or flattened.
• The sides of a box bow slightly outward.
• The top box in a column sits lower than the boxes on either side.
• Boxes shift or slide when the floor is walked on or a forklift passes by.
• The box feels softer to the touch than it did when it arrived at the dock.

These symptoms indicate that the board is compressing beyond its design limit. The flutes are no longer providing full support. The box is losing its shape. If you see these signs, the stack above may be at risk of tipping.

A common mistake is to attribute these signs to poor handling during delivery. While rough handling can cause immediate damage, the slow flattening described above is almost always a load capacity issue. Look at the bottom box first. It carries the weight of every box above it. If the bottom box is flat but the top box is square, the lower board was simply not strong enough for the height of the stack. If the top box is also flat, the entire stack may have been built with a flute type that was under-specified for the weight of the contents.

Check the corners as well. Flute failure often starts at the edges where the board is cut and the air pockets are exposed to the environment. If the corners are crushed but the center of the side is still square, the load was likely uneven. This can happen if a forklift pallet jack is not centered when lifting the stack. The off-center lift creates a torque that pushes the flutes on one side of the box flat while the other side holds its shape.

Troubleshooting Common Stack Issues

The table below connects visible symptoms to their likely causes and the corrective actions you should take.

Symptom	Likely cause	What to do
Bottom boxes flatten while top boxes stay square	Flute type is too small for the stack height	Replace with a larger flute type for the bottom layer
Sides bow outward on middle boxes	Internal contents are uneven or top-heavy	Re-center contents or add internal dividers
Boxes shift sideways during forklift movement	Floor is uneven or pallets are not leveled	Use leveling pads or check floor grade
Flutes feel crushed after a short time	Board exposure to moisture or temperature	Store in controlled environment or use moisture-resistant board
Top box slides off the column below	Friction is low between box surfaces	Use a pallet or add a top layer with higher friction

When diagnosing these issues, isolate the variable. If the bottom boxes are flat, do not change the top boxes. The top boxes are not causing the problem. The problem is the base. Replace the bottom layer with a board that has a higher compressive strength rating. If the sides are bowing outward, check the contents. A box filled with heavy items on one side acts like a lever. The weight pushes the wall away from the center of gravity. Adding a cardboard divider inside the box can hold the contents in place and reduce this lateral pressure.

For shifting issues, look at the floor. Concrete warehouse floors are rarely perfectly level. A small dip in the floor can cause a pallet to sit at an angle. Even a degree of tilt creates a constant sliding force on the boxes. Use a level to check your pallets. If the floor is uneven, use shims or leveling pads under the pallet. Do not just stack the boxes higher to compensate. That adds more weight to the already unstable base.

Matching Flute Selection to Warehouse Conditions

Not all flutes perform the same way in every storage environment. The right choice depends on three factors: load height, storage duration, and environmental conditions.

Load height is the first factor. A stack of five boxes puts a different pressure on the bottom box than a stack of fifteen. If you are storing high-volume, low-value goods in tall columns, you need a flute that can handle that vertical load. Larger flute types are better suited for tall stacks because they distribute the compressive force over a greater area. Smaller flutes are better for short, single-layer storage or for boxes that will be handled frequently during pick operations.

When calculating load height, count the number of layers, not just the physical height. A stack of five small, heavy boxes exerts more downward force on the bottom flute than a stack of five large, light boxes. The weight of the contents is as important as the number of boxes. If you store dense goods, such as metal parts or liquids, the bottom box takes the brunt of the load. You may need a double-wall board for the bottom layer even if the top layers can be single-wall. This is a common cost-saving measure. You use the strong material where it is needed and the lighter material where it is not.

Storage duration is the second factor. A box that sits in storage for two weeks does not need the same structural support as a box that sits there for three months. Over time, the board experiences a slow process of compression. The flutes settle. If the storage period is long, you should select a flute type that has a higher load threshold to prevent gradual flattening.

This settling is often called creep. The board fibers slowly adjust to the constant pressure. A board that held its shape perfectly on day one may have lost several millimeters of height by day thirty. This loss of height changes the fit of the boxes in the stack. The top box may no longer sit flush on the bottom box. It may start to slide. For long-term storage, look for boards with a higher burst strength, which indicates the board can resist tearing and puncturing under stress, and a higher compressive strength, which indicates it can resist flattening.

Environmental conditions are the third factor. Warehouses are not always dry or temperature-controlled. If your facility has high humidity or temperature swings, the board can absorb moisture. Moisture weakens the board and reduces the strength of the flutes. A flute type that performs well in a dry environment may fail quickly in a humid one. If your warehouse has poor climate control, choose a flute type with a thicker board or use a board treatment that resists moisture.

Moisture does not just make the board heavy. It changes the chemical bonds in the paper fibers. The glue that holds the flutes together weakens when it absorbs water. The paper fibers swell and lose their stiffness. A flute that is flexible in dry conditions becomes soft and limp in humid conditions. If your warehouse has a history of condensation in winter or high humidity in summer, test your board in those conditions before committing to a large order. Ask your supplier for board samples that have been conditioned to your warehouse environment.

Preventing Stack Collapse Before It Happens

Prevention is cheaper than cleanup. You can reduce the risk of stack failure by taking a few simple steps during the design and storage phases.

1. Test the stack before you commit to full-scale storage. Build a sample column with the same number of boxes and the same contents. Leave it for two weeks. Check for flattening or shifting.
2. Use a pallet as the base. A pallet distributes the weight of the bottom box and prevents the flutes from crushing against a hard floor. It also makes it easier to inspect the bottom layer.
3. Keep the stack height consistent. Do not mix different box sizes in the same column. A larger box on top of a smaller one creates an overhang that adds lateral stress to the flutes.
4. Inspect the stack at regular intervals. Check the bottom boxes for signs of compression. If you see dented flutes, move the stack or replace the boxes.
5. Store boxes away from direct heat sources. Heat can dry out the board and make it brittle. A brittle flute type is more likely to crack under load.

The test stack is the most valuable tool you have. Do not skip it. Build a column exactly as it will be stored. Put the same contents inside. Weigh the contents. If you are not sure of the weight, use the maximum expected weight. Leave the column in the actual storage location, not in an office. The temperature and humidity in the storage area will affect the board. Check the column after one week and again after two. If the bottom box has flattened more than a few millimeters, your current flute type is not strong enough. Change the board before you ship the full order.

Using a pallet is not just about ease of handling. It is a structural necessity. Without a pallet, the bottom flute of the box sits directly on the concrete floor. Concrete is hard and unyielding. The flutes are soft and compressible. When the floor pushes up against the flutes, it creates a point of contact that can crush the board. A pallet distributes the weight of the stack over a larger area. It also lifts the boxes off the floor, allowing air to circulate. This reduces the risk of moisture buildup at the bottom of the box.

Keep the stack height consistent. This is simple but often ignored. If you put a large box on top of a small one, the top box overhangs the bottom box. The overhang creates a lever arm. The weight of the overhanging part pushes down on the edge of the bottom box. This pushes the flutes on that side flat. The stack may tip over. Use the same box size for every layer in a column. If you need to store different sizes, store them in separate columns.

Inspect the stack at regular intervals. Do not wait for a collapse to happen. Walk the aisle and look at the bottom boxes. Press on the sides. If the flutes give way, the box is compromised. Move the stack to a lower location or replace the bottom boxes. Do not just stack more boxes on top to hide the problem. That adds more weight to a weak base.

Store boxes away from direct heat sources. Heat sources include heaters, vents, and sunlight coming through windows. Heat dries out the board. Dry board is brittle. Brittle board cracks under load. If a flute cracks, the air pocket inside is lost. The box loses its structure. Move the boxes to a cooler, drier location. If you cannot move them, use a board that is resistant to heat and dryness.

When to Change Flute Types

You may need to change your flute selection if your storage conditions change. If you move to a warmer or more humid warehouse, your current flute type may no longer be sufficient. If you increase your stack height, you may need a larger flute. If you switch to heavier contents, you may need a stronger flute type.

Do not assume that a larger flute is always better. Larger flutes use more material and cost more. They also make the box less flexible. A smaller flute may be better for a box that needs to fit in a tight space or that will be handled frequently during pick operations. The goal is not to use the strongest flute possible. The goal is to use the flute that matches the specific demands of your storage environment.

Consider the total cost of ownership, not just the cost of the box. A larger flute costs more per box. But if it prevents a stack collapse, it saves you the cost of damaged goods, labor to clean up the mess, and the risk of injury to your workers. If you are storing high-value items, the cost of a larger flute is often justified by the value of the goods it protects. If you are storing low-value items, the cost of the larger flute may be higher than the value of the goods. In that case, a smaller flute may be more cost-effective.

Also consider the handling process. If your boxes will be picked and restacked many times a day, a smaller flute may be more durable. Larger flutes are more fragile. They can be damaged by rough handling. A smaller flute can take a bump without losing its shape. A larger flute may crack or flatten. Match the flute to the handling process as well as the storage conditions.

Final Checks for Flute Stability

Before you ship a pallet or load a truck, take a moment to check the flute stability. Press on the sides of the bottom box. If it gives way or feels soft, the flutes are not holding their shape. Check the top box for signs of sliding. If the top box is not sitting flush on the box below, the stack is at risk of shifting.

A stable stack is not just about the box size. It is about the board structure. The flute types determine how well the box can hold its shape under pressure. If you choose the right flute for your warehouse conditions, your stacks will stay upright and your goods will arrive in good condition.

Do not just look at the outside of the box. Open the top and check the inside of the bottom box. Look for crushed flutes. If the inside of the bottom box is flat, the box is not holding its shape. Even if the outside looks square, the inside may be compromised. This is a common failure mode. The outside of the box holds its shape because the top and bottom sheets are still intact. But the flutes inside have collapsed. The box is weak. It will fail as soon as the load changes.

Check the tape lines. If the tape is loose or peeling, the box is not holding its shape. The tape is what keeps the flutes in place. If the tape fails, the flutes can shift and collapse. Replace the tape or use a different type of tape. Also check the corners. If the corners are crushed, the box is not holding its shape. Replace the box or reinforce the corners with a corner guard.

Finally, check the floor. If the floor is uneven, the stack will shift. Use a level to check the floor. If the floor is not level, use leveling pads. Do not ignore the floor. The floor is the foundation of the stack. If the foundation is weak, the stack will fail.
